Configuration Security Roles

This article outlines the security options for configuration users on the ProcessFactorial Portal

Security Layers

The ProcessFactorial Portal has three layers of security. Each layer requires that the user also has access to the layer above in some form

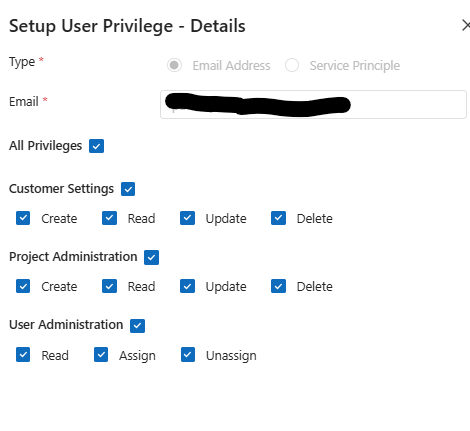

Customer Level Permissions

This is the top-most level. This allows users to access the general customer information and basic project visibility

Privilege	Permission	Purpose	Minimum Recommended Permission
Customer Settings	Create, Read, Update, Delete	Allows users to modify or read the customer name and description	Read
Project Administration	Create, Read, Update, Delete	Allows users to create, read or modify projects. This permission is needed if the user will be creating new projects. Typical configurators should not be able to create new projects	Read
User Administration	Read, Assign, Unassign	Allows users to read, assign new or remove existing user access. Only administrators should have Assign and Unassign access	Read

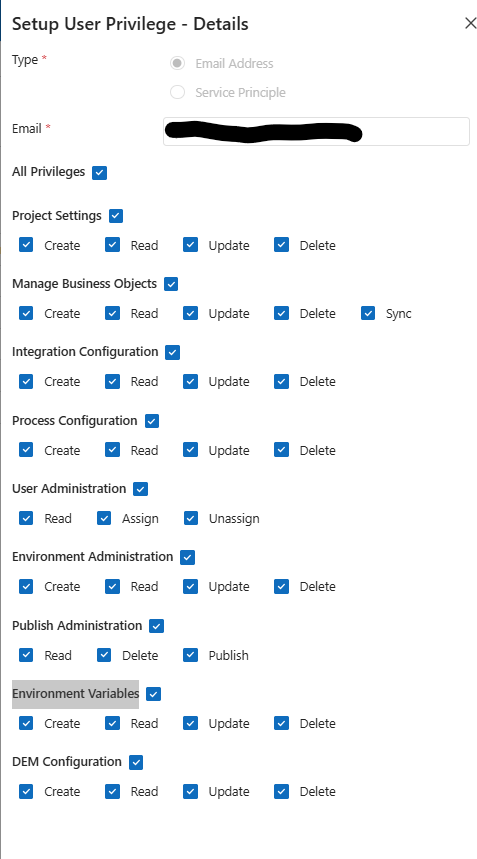

Project Level Permissions

This role is used for administration of the project, configuration of Flows, Forms and Integrations.

Users with this role must first belong to the #Customer Role above.

Privilege	Permission	Purpose	Minimum Recommended Permission
Project Settings	Create, Read, Update, Delete	Allows users to modify or read the project name, description and other configuration settings	Read
Manage Business Objects	Create, Read, Update, Delete, Sync	Allows users to maintain the business objects (tables) on the platform. If the metadata is being maintained in the Data Store, meaning that users will not be modifying the tables and fields in the ProcessFactorial Portal, then users should not have Create, Update or Delete permissions. The sync permission allows the user to sync the metadata in the Data Store with the ProcessFactorial Portal	Read
Integration Configuration	Create, Read, Update, Delete	Allows users to configure integrations. This is a core configuration role	Read
Process Configuration	Create, Read, Update, Delete	Allows users to configure flows. This is a core configuration role	Read
DEM Configuration	Create, Read, Update, Delete	Allows users to configure forms. This is a core configuration role	Read
User Administration	Read, Assign, Unassign	Allows users to read, assign new or remove existing user access. Only administrators should have Assign and Unassign access	Read
Environment Administration	Create, Read, Update, Delete	Allows users to create and maintain NPO Environments for this project. Only administrators should have Create, Update and Delete access	Read
Publish Administration	Read, Delete, Publish	Allows a configurator to publish a Factorial Flow, Factorial Form or Integration Typically most configurators will have this permission to test their configurations	Read
Environment Variables	Create, Read, Update, Delete	Allows configurators to create and maintain NPO Placeholder values at configuration level.	Read

Environment Level Permissions

This role is used for administration of NPO Environments and deployment of artifacts.

Every environment has it's own permissions. This allows the administrators to allow configurators to deploy to only certain environments, such as development, but not to others such as production

Users with this role must first belong to the #Project Role above.

Data Store Data permission

This permission will allow the user to read data from the target Data Store with the same security role as the user configured to connect to the Data Store via the Link to Environment page. It is strongly recommended that configurators only have this permission on non-production systems

Privilege	Permission	Purpose	Minimum Recommended Permission
Environment Settings	Create, Read, Update, Delete	Allows users to modify or read the environment name, description and update other settings such as connection strings	Read
Deployment Administration	Read, Deploy, Delete	Allows users to deploy published artifacts to this environment	None
Environment Variables	Create, Read, Update, Delete	Allows users to maintain NPO Placeholder values at an environment level	None
Execution Logs Individual	Read	Allows users to see individual execution report for a single execution	Read
Execution Logs Aggregate	Read	Allows users to see aggregate, non-identifiable, execution metrics	Read
Data Store Data	Read	Allows user to read data from the Data Store This will use the user permissions configured in the Link to Environment page.	Read *
User Administration	Read, Assign, Unassign	Allows users to read, assign new or remove existing user access. Only administrators should have Assign and Unassign access	Read

Recommended Roles

This section outlines typical roles of users and what permissions each role should have.

Any permissions not listed should default to the minimum recommended permissions in the #Security Layers above

When it comes to the NPO Environments, each environment's access needs to be considered individually. For example, configurators will need to deploy to a development environment, but not to a production environment

Role	Purpose
All Access	Basically a global administrator
Minimum	Minimum rights for someone to have read only access to the resources
Administrator	Creates and maintain customers, projects and environments only
Configurator	Core business user that uses the ProcessFactorial Portal to do configuration and testing
Deployment Administrator	Manages deployments to upstream environments, including production
### All Access
Level	Privilege
-----------	--------------------------
Customer	Customer Settings
	Project Administration
	User Administration
Project	Project Settings
	Manage Business Objects
	Integration Configuration
	Process Configuration
	DEM Configuration
	User Administration
	Environment Administration
	Publish Administration
	Environment Variables
Environment	Environment Settings
	Deployment Administration
	Environment Variables
	Execution Logs Individual
	Execution Logs Aggregate
	Data Store Data
	User Administration

Minimum

Level	Privilege	Create	Read	Update	Delete	Assign Unassign	Publish Deploy Sync
Customer	Customer Settings
	Project Administration
	User Administration
Project	Project Settings
	Manage Business Objects
	Integration Configuration
	Process Configuration
	DEM Configuration
	User Administration
	Environment Administration
	Publish Administration
	Environment Variables
Environment	Environment Settings
	Deployment Administration
	Environment Variables
	Execution Logs Individual
	Execution Logs Aggregate
	Data Store Data
	User Administration
### Administrator

Manages the platform. Does not do any configuration. Will have the below permissions for every available environment, including production

Level	Privilege	Create	Read	Update	Delete	Assign Unassign	Publish Deploy Sync
Customer	Customer Settings
	Project Administration
	User Administration
Project	Project Settings
	Manage Business Objects
	Integration Configuration
	Process Configuration
	DEM Configuration
	User Administration
	Environment Administration
	Publish Administration
	Environment Variables
Environment	Environment Settings
	Deployment Administration
	Environment Variables
	Execution Logs Individual
	Execution Logs Aggregate
	Data Store Data
	User Administration
### Configurator

Configures Flows, Forms and Integrations. Will typically only have access to a development and maybe a test environment, but no access to a production environment (no permissions at all).

For Manage Business Objects, if the metadata is only being sourced from the target Data Store, only give Read and Sync access

Level	Privilege	Create	Read	Update	Delete	Assign Unassign	Publish Deploy Sync
Customer	Customer Settings
	Project Administration
	User Administration
Project	Project Settings
	Manage Business Objects
	Integration Configuration
	Process Configuration
	DEM Configuration
	User Administration
	Environment Administration
	Publish Administration
	Environment Variables
Environment	Environment Settings
	Deployment Administration
	Environment Variables
	Execution Logs Individual
	Execution Logs Aggregate
	Data Store Data
	User Administration

Deployment Administrator

Deploys published artifacts to a specific environment

Level	Privilege	Create	Read	Update	Delete	Assign Unassign	Publish Deploy Sync
Customer	Customer Settings
	Project Administration
	User Administration
Project	Project Settings
	Manage Business Objects
	Integration Configuration
	Process Configuration
	DEM Configuration
	User Administration
	Environment Administration
	Publish Administration
	Environment Variables
Environment	Environment Settings
	Deployment Administration
	Environment Variables
	Execution Logs Individual
	Execution Logs Aggregate
	Data Store Data
	User Administration
